Overview
RGB LEDs have transformed lighting design across automotive interiors, consumer electronics and architectural applications β but maintaining consistent colour output across production volumes is a significant challenge. Intensity variability and colour mixing mean that individual calibration may be required to ensure each unit meets its specification.

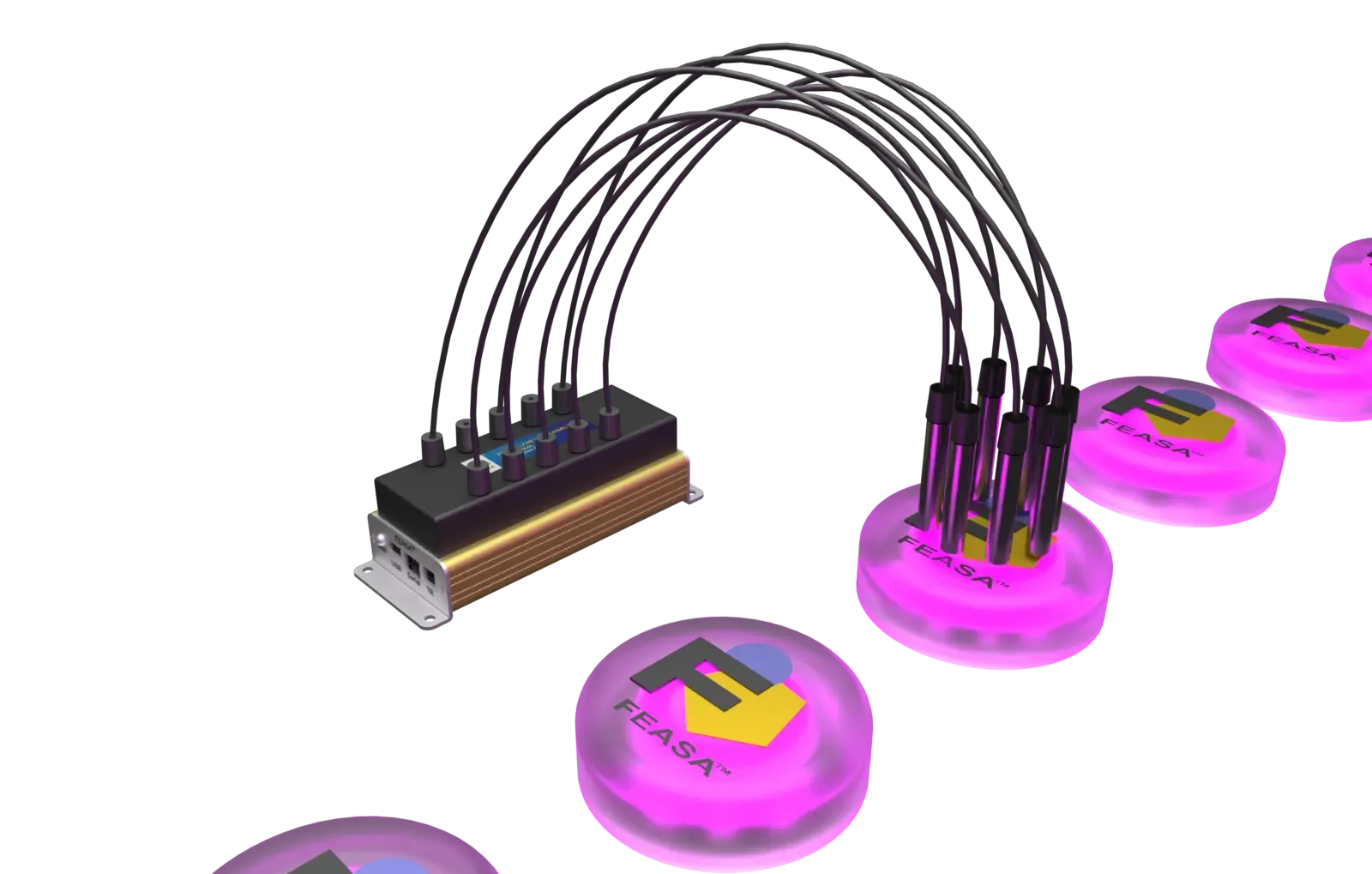

The Feasa RGB LED Analyser is purpose-built to address this. Using a 2.2mm polished fibre optic β larger than the 1mm fibre used on standard Feasa analysers β it captures light efficiently from RGB LEDs and backlit panels where the light source is diffuse or passes through plastic panelling. It tests intensity, homogeneity, xy chromaticity, Dominant Wavelength and CCT simultaneously across up to 10 channels in a single capture cycle.
Supporting luminance levels from 0.5 cd/mΒ² to 1,000 cd/mΒ², it handles a wide range of RGB and colour-mixed LED applications. Accurate to Β±0.01 @ x=0.33, y=0.33 for monochromatic and RGB colours, with repeatability of Β±0.002 β well within the tolerances demanded by automotive and consumer electronics specifications.
Built for RGB. Trusted globally.
Purpose-built for RGB and mixed-colour LEDs
2.2mm polished fibre optic captures diffuse light efficiently from RGB LEDs and backlit panels β where the standard 1mm fibre would miss significant light output. Accurate to Β±0.01 CIE xy for both monochromatic and RGB colours.
Wide luminance range
Operates from 0.5 cd/mΒ² to 1,000 cd/mΒ² β covering the full range of RGB LED backlit panel applications from dim interior ambient lighting to brighter display panels. No range switching required mid-fixture.
Full colour output suite
Outputs Intensity, CIE xy, CIE u'v', Dominant Wavelength and CCT simultaneously per channel. Feeds directly into pass/fail decisions, SPC reporting and golden-board reference workflows using the Feasa Software Suite.
40+ years expertise
Engineering LED test solutions since the early 2000s, headquartered in Limerick, Ireland.
Millions of LEDs daily
Tested every day worldwide via Feasa systems across automotive, medical and electronics production lines.
ISO 9001 certified
Full in-house design, development and manufacturing. Deployed in 30+ countries worldwide.
Applications
Where our RGB LED Analyser is commonly used.
Automotive Interior
RGB Lightguides and Ambient Lighting
Automotive
Backlit Switches and Panels
Consumer Electronics
RGB Indicators and Backlights
Lighting
Light Engines and Modules
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Channels | 3, 5, 6, 10 | Simultaneous measurement |
| Wavelength range | 460β650 nm | RGB LED range |
| Luminance range | 0.5β1,000 cd/mΒ² | Min and max luminance |
| CIE xy accuracy | Β±0.01 @ x=0.33, y=0.33 | Monochromatic and RGB colours |
| CIE xy repeatability | Β±0.002 | Precision measurement |
| Intensity repeatability | < 1% | Excellent consistency |
| Dimensions (3β6 ch) | 105 Γ 55 Γ 50 mm | Compact design |
| Dimensions (10 ch) | 145 Γ 55 Γ 50 mm | Larger multichannel |
| Fiber length | 0.6 m | Per channel β polished |
| Fiber diameter | 2.2 mm incl. cladding | Larger aperture than 1mm fibre |
| Min. bend radius | 35 mm | 2.2mm fibre |
| Operating temperature | 0β50Β°C | Industrial range |
| Interface | USB, RS232, Daisy Chain | Up to 30 units per port |
| Supply voltage | 5.0V | USB bus powered |
| Supply current | 220 mA | Confirm with engineering |
| Output formats | Intensity, CIE xy, CIE u'v', DW, CCT | |
| Compatible optical heads | OH-12, OH-13, OH-14, OH6-RGB, OH3-RGB | 2.2mm POF heads β see optical heads page |
| Compliance | CE, RoHS | EU standards |
| Model numbers | 3-RGB Β· 5-RGB Β· 6-RGB Β· 10-RGB | Channel variants |
Feasa Software Suite
Included with every analyser
- Feasa Terminal β Direct command-line control and diagnostics
- Feasa User Software β Setup, calibration and pass/fail configuration
- Feasa Test Software β Production-line test execution and logging
- Feasa User Cal β User-side calibration management
- Real-time chromaticity display β XY chromaticity per channel with colour diagram overlay
- DLL/SDK β Programming examples in LabVIEW, C, C++, C#, Python
